HL2024 Cradle

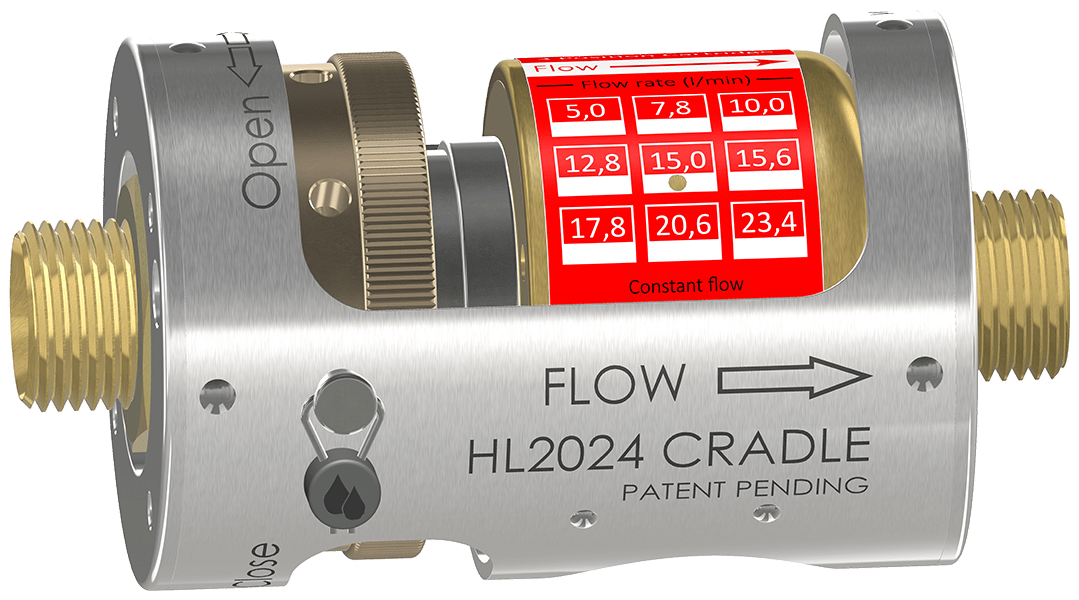

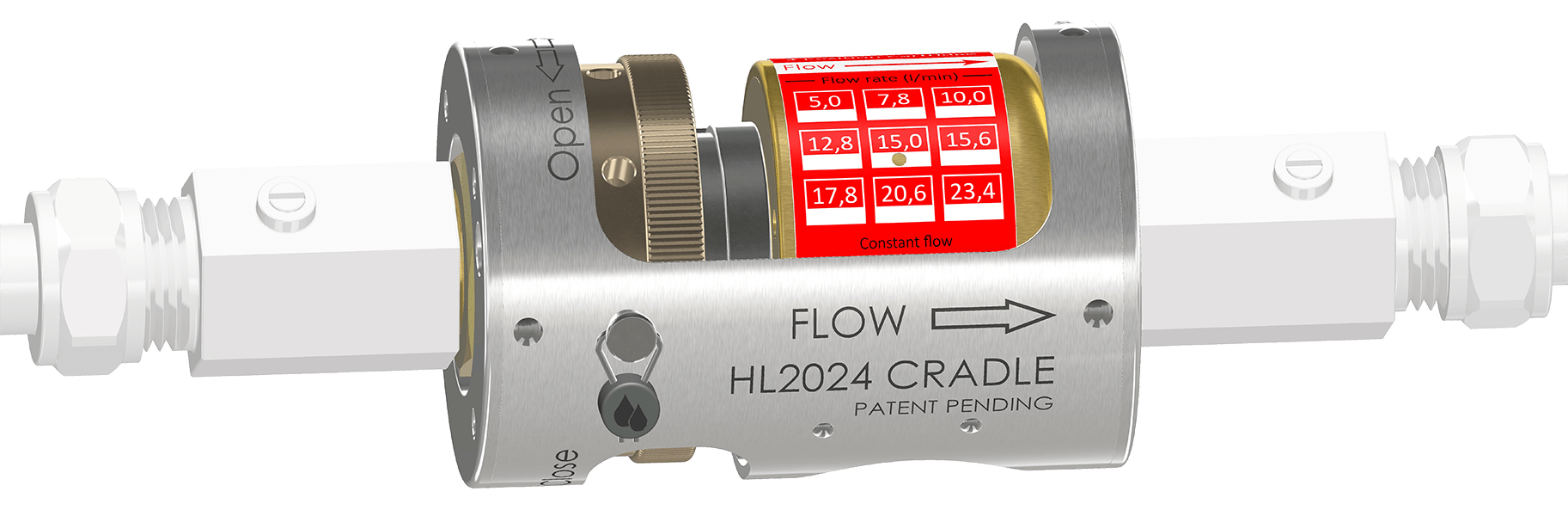

The HL2024 Cradle is a special type of HL2024 Inline product that houses a HL2024 Cartridge: a modular system that contains up to three HL2024 Flow Controllers. The HL2024 Cradle is designed to allow for quick and easy maintenance while ensuring a constant flow, optimal user comfort, savings and system stabilisation. The HL2024 all-in-one.
HL2024 Cradle
The HL2024 Cradle is a special type of HL2024 Inline product that houses a HL2024 Cartridge: a modular system that contains up to three HL2024 Flow Controllers. The HL2024 Cradle is designed to allow for quick and easy maintenance while ensuring a constant flow, optimal user comfort, savings and system stabilisation. The HL2024 all-in-one.
Benefits at a glance:
Benefits at a glance:
Easy maintenance
It’s a breeze!
The clever design of the HL2024 Cradle reduces maintenance to a minimum. And allows it to be done without shutting off the supply.
Modular system
Flexible and versatile
Thanks to its three positions, the HL2024 Cartridge offers a range of flow rates between 5.0 and 23.4 litres per minute. As a result, HL2024 is appropriate in virtually any situation.
System stabilisation
Enough water for every tap!
With HL2024, the pressure in the water system is maintained better. Therefore more pressure and more water is available for other draw-off points.
Maximum flow
Predictable and calculable!
HL2024 always gives the same amount of water, capped at a maximum, irrespective of the pressure and any pressure fluctuations in the system. In this way, HL2024 makes managing the system simpler.
Easy maintenance
It’s a breeze!
The clever design of the HL2024 Cradle reduces maintenance to a minimum. And allows it to be done without shutting off the supply.
Modular system
Flexible and versatile
Thanks to its three positions, the HL2024 Cartridge offers a range of flow rates between 5.0 and 23.4 litres per minute. As a result, HL2024 is appropriate in virtually any situation.
System stabilisation
Enough water for every tap!
With HL2024, the pressure in the water system is maintained better. Therefore more pressure and more water is available for other draw-off points.
Maximum flow
Predictable and calculable!
HL2024 always gives the same amount of water, capped at a maximum, irrespective of the pressure and any pressure fluctuations in the system. In this way, HL2024 makes managing the system simpler.
Maintenance
has never been this
easy

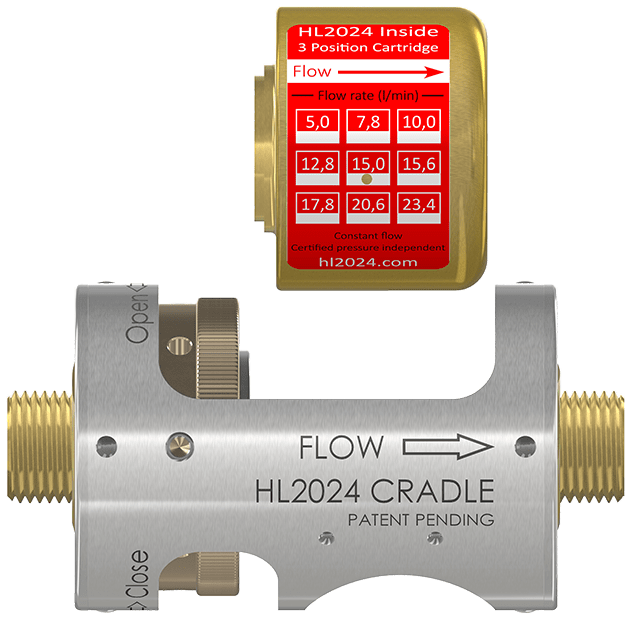

The HL2024 Cradle forms a casing around the HL2024 Cartridge. A unique mechanism connects the two components, making maintenance quick and simple. What’s more, it can be carried out without de-installing the entire product from the water system.
Simply turn the bronze wheel to loosen and remove the Cartridge from the Cradle. Thanks to this system, the HL2024 Cradle can be serviced or cleaned in the blink of an eye. And as a result, managing the water system becomes more cost-effective and less time-consuming.
Maintenance
has never been this
easy
The HL2024 Cradle forms a casing around the HL2024 Cartridge. A unique mechanism connects the two components, making maintenance quick and simple. What’s more, it can be carried out without de-installing the entire product from the water system.
Simply turn the bronze wheel to loosen and remove the Cartridge from the Cradle. Thanks to this system, the HL2024 Cradle can be serviced or cleaned in the blink of an eye. And as a result, managing the water system becomes more cost-effective and less time-consuming.
Modular system:
Flexible and versatile

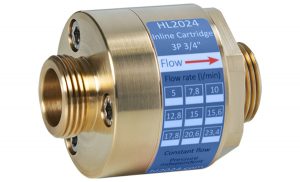

The HL2024 Cartridge is modular in nature: the product contains up to (at maximum) three integrated HL2024 Flow Controllers. Thanks to this flexible and versatile design, the HL2024 Cartridge is available in different flow rate variants.* The flow is determined by the specific combination of HL2024 Flow Controllers and HL2024 Blinds within the HL2024 Cartridge.
This enables HL2024 to always supply the desired flow, in a wide range of applications. Even in combination with higher flow rates.**
A true all-rounder!
* The HL2024 Cradle is available as standard in the following flow rate variants: 5.0 / 7.8 / 10.0 / 12.8 / 15.0 / 17.8 / 20.6 / 23.4 litres per minute.
** For flow rates greater than 23.4 litres per minute, HL2024 products with more than three positions are available on request. Please contact us.
Modular system:
Flexible and versatile
The HL2024 Cartridge is modular in nature: the product contains up to (at maximum) three integrated HL2024 Flow Controllers. Thanks to this flexible and versatile design, the HL2024 Cartridge is available in different flow rate variants.* The flow is determined by the specific combination of HL2024 Flow Controllers and HL2024 Blinds within the HL2024 Cartridge.
This enables HL2024 to always supply the desired flow, in a wide range of applications. Even in combination with higher flow rates.**
A true all-rounder!
* The HL2024 Cradle is available as standard in the following flow rate variants: 5.0 / 7.8 / 10.0 / 12.8 / 15.0 / 17.8 / 20.6 / 23.4 litres per minute.
** For flow rates greater than 23.4 litres per minute, HL2024 products with more than three positions are available on request. Please contact us.
